Features:

*Chief K2W120B Articulating Monitor Mount

*90 Degree Monitor Board Mounted On Friction Hinges

*Slide Out Shelf:

  -1/2” Baltic Birch Construction

  -Black Texture Coated

  -Beveled Edge Palm Rest

  -Usable Dims: 16.875” wide x 12” deep x 6.125” tall

*16 RU Rack Section:

  -Pre-Tapped 10/32” Rack Rail

  -Rear Rack Rail

  -22” Rail To Rail Depth

*3 Lids: Front, Top, & Back

*4 Deep Recessed Handles

*4” Colson Casters (2 Locking)

*Max Monitor Size: 21.75” wide x 13” tall x 3” deep

*Max OD Case Dimensions Including Corners & Casters: 21.25” wide x 33” deep x 51.75 ” tall

*211lbs

Description:

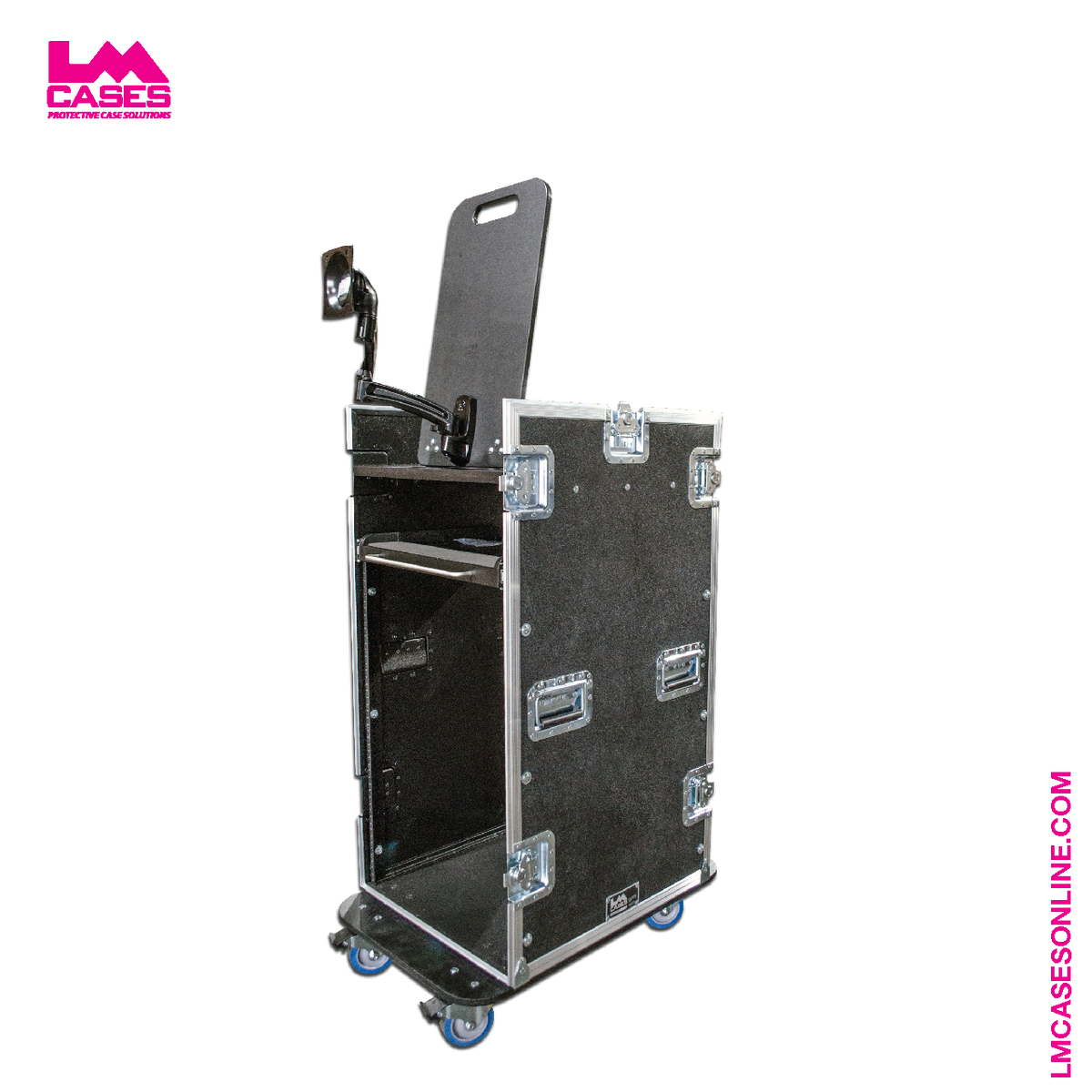

This case is designed with mobile audio and video productions in mind. The 3 axis monitor mounting system allows the display to be angled in a sitting or standing position, extended, and moved to the left or right of center. A position control board handles the monitors angle. Friction hinges are used allowing the screen to be raised to a vertical position or laid flat. These friction hinges allow the monitor to behave in the same manner as a laptop screen: the screen can be positioned in any position along a 90 degree plane without the need for ratcheting mechanisms or support rods. A Chief K2W120B mount is installed to allows the display to be positioned left or right of center, in addition to 15” of extension towards the user.

A slide out shelf constructed from ½” Baltic birch is provided for a keyboard, switcher, or control surface. The shelf features usable space of 16.875” x 12” x 6.125”. The shelf includes a beveled crosslink foam wrist pad.

A 16 space rack section is provided for equipment mounting. Front and rear rails are included with 22” of rack depth. The exterior case is built from 3/8” plywood laminated with your choice of ABS plastic colors. The case features 4 deep recessed handles, 3 removable lids, and 4” Colson casters.
