*30 Individual Compartments For Mic Stands (25 Full Size / 5 Lo Pro)
*Carpet Lined Work Surface w/Anti Roll Edging
*Full Color LED Task Lighting In Lid w/Remote Control
*3 HD Drawers:
-1/2” Baltic Birch Construction w/Dove Tail Joints
-HD Accuride® Drawer Glides
-1/2” Black ABS Laminated Faces
-Recessed Spring Loaded Pull Handle
*30 Capacity Hand Held Mic Foam Insert In Top Drawer
*2 Open Accessory Drawers For Larger Mics In Factory Cases
*2 RU Rack Section
*Recessed Power Inlet Box – 1 Interior Mounted Duplex Outlet
*4” Colson® Casters (2 Locking) Mounted On A Full Sized ¾” Board
*10 Deep Recessed Handles
*Max OD Dims Including Corners & Casters: 48” wide x 30” deep x 46” tall

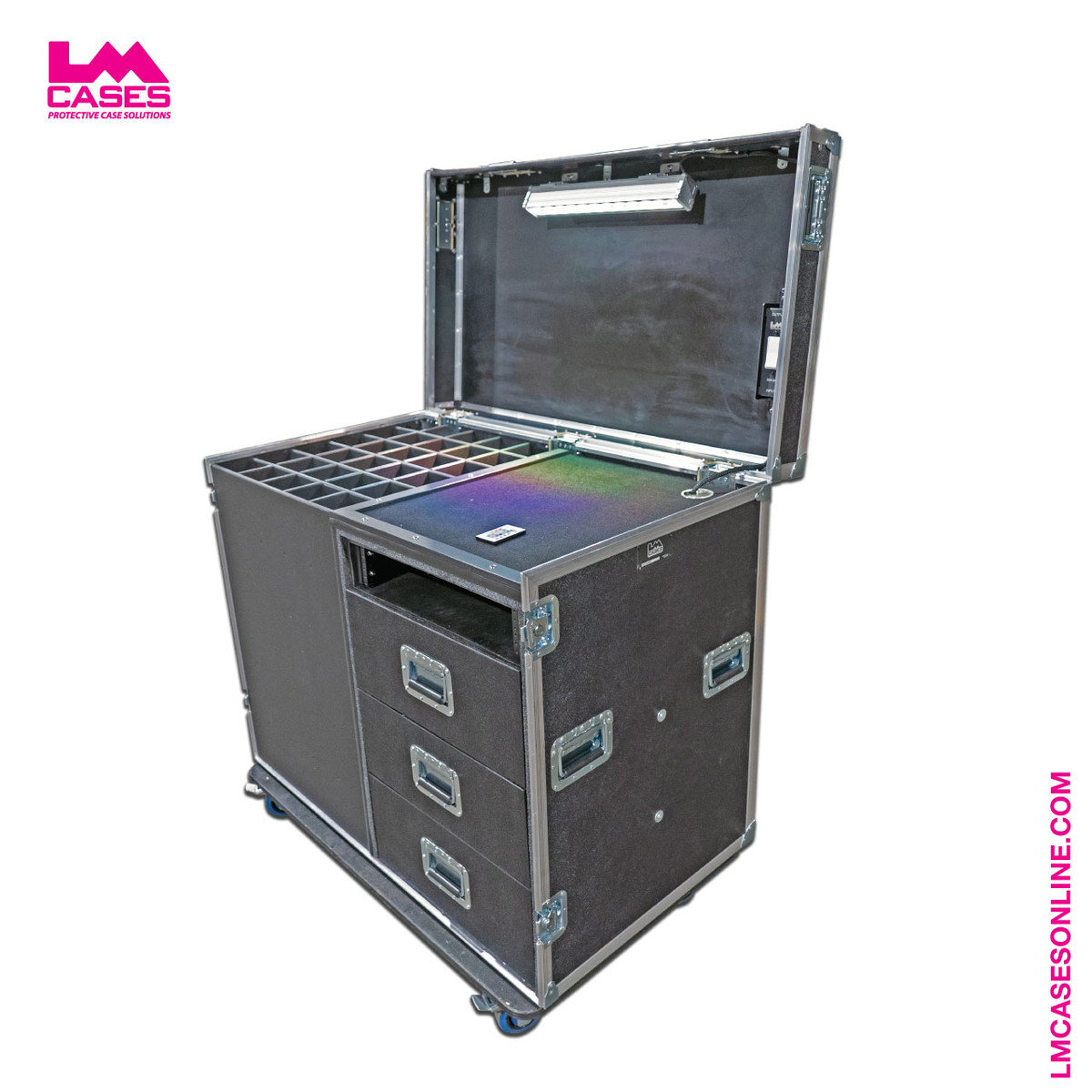

This work station is designed for touring sound productions and venues with in house production. The work station holds 25 full sized mic stands and 5 low profile mics stands. The low profile stands are mounted in the front 5 compartments for easy access. The mic stand divider network is construction from black ½” non abrasive marine grade plastic. All edges are routed for easy loading. The stands rest on carpet to prevent gouging in the case bottom. The full sized stand compartments feature usable dimensions of 4.125” wide x 3.875” deep x 38” tall. The low profile stand compartments feature the same width and depth as the full sized stands with a reduced height of 20”.
The main work surface features usable dimensions of 21.75” wide x 24.75” deep. It is finished with carpet to provide a soft, non-abrasive, work surface. A ¼” marine grade plastic lip lines the perimeter of the work surface to prevent microphones from rolling off. A 2RU rack section is mounted below the work surface for power distribution units such as the LM Tour Systems 2RU Edison/USB Power Distribution Unit. The bottom of the rack section is lined with carpet allowing the space to be used as a shelf should the rack rails not be needed. A power inlet box is provided with a recessed “male” Hubbell inlet. The inlet is wired to a duplex outlet mounted in a fully enclosed back box.
3 drawers are provided for microphone and peripheral storage. The first drawer features a 30 capacity PE foam insert for typical hand held mics such as the SM58 & SM57. Spacing is provided for larger and odd shaped mics such as the e604 and e609. 2 open drawers are provided for larger mics like 421’s and condenser mics in factory plastic cases. Each drawer is built out of ½” Baltic birch joined via dove tails. The drawers are mounted in a ½” plywood inner structure that isolates them from the exterior case preventing damage from external stresses. All drawers are mounted on HD Accuride® glides.
The case lid features full color LED lights. The light color can be changed to a dim red or blue to provide working light backstage during shows. The lights are mounted behind a bezel to guide the light on the mic stands and work surface, and not in the user’s eyes. The exterior case is built out of 3/8” plywood laminated with your choice of ABS plastic colors. The case features pad-locking hasp latches, and 10 deep recessed handles. The case rides on 4” Colson® casters (2 Locking) mounted on a full sized ¾” birch caster board. The case features exterior dims of 48” x 30”. LM Cases are built by hand in Youngstown, Ohio.
