*15RU Angled Rack Section For Mixer
*24.25" Wide x 26.25" Deep Work Space Next To The Mixer
*Dual Shock Mounted 14RU Rack Sections
*Rear Rack Rail In Rack Sections
*Table Legs In Front Lid
*Hubbell Power Inlet w/Neutrik Cat5 Jack
*4" Colson Casters (2 Locking)

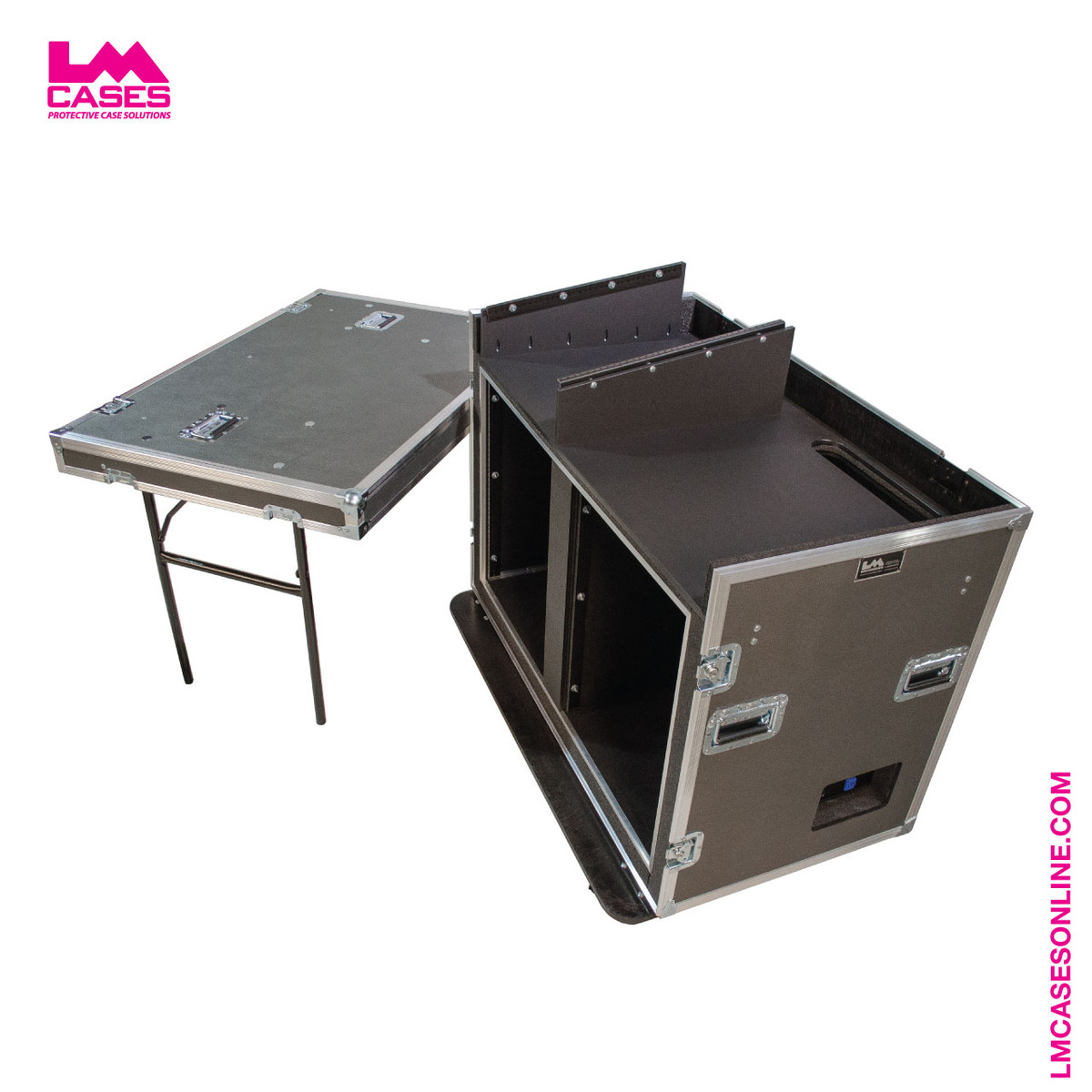

The top work surface of the Yamaha QL1 Double Wide Mixer Workstation features a 15RU angled rack section built out of 1/2" marine grade plastic that holds the console. To the right of the console is a large work surface that can accommodate a small lighting or video controller or provide for a stage manager to call a show. Below the console are two fully shock mounted 14 space racks with rear rack rail and independent rear trap doors. Each rear trap door features a "mouse hole" allowing cables to remain plugged in while the doors are closed. The right rack section features a recessed Hubbell power box that features a power inlet wired to a Hubbell duplex outlet and a Neutrik cat5 jack. The box provides a fully enclosed solution for providing power to the case and supplying a digital snake feed line.
The case exterior is built out of 3/8" plywood and features 10 deep recessed handles and 4" Colson casters (2 Locking + 2 Non). The front lid is removable and features table legs.
Maximum Case OD Dims Including Casters: 49.5" wide x 30" deep x 50.375" tall
