Features:

*240v To 120v Step Down Power Conversion

*16 Amp Input @ 240v – 32 Amp Output @ 120v

*True1 Power Inlet w/15amp Breaker

*Volt/Amp Meters On 240v & 120v Sides

*Front Mounted Courtesy Outlet w/USB A & C Ports

*4 Rear Mounted Duplex Outlets

*4 True1 Outlets

*4 Powercon Outlets

*LM Tour Systems World Power Adapters:

  -True1 Power Connectors

  -12/3awg SJEEW Cable – 1ft

  -Schuko E – True1

  -Schuko F – True1

  -Type G – True1

  -Type L – True1

  -25ft True1 – True1 Cable

*Rack Shell:

  -¾” Baltic Birch Construction

  -Black Texture Coated

  -4 Black Deep Recessed Handles

  -6U Height

*Pelican 1630 Case:

  -CNC Cut PE Foam Insert

  -Dedicated Rack & Cable Compartments

  -¼” Marine Grade Plastic Top Cap Over Foam Insert

  -Telescoping Handle w/4 end side casters

*Max OD: 31.375” wide x 24.25” deep x 17.5” tall

*115lbs

Description:

The LM Tour Systems C 1/1 Power Conversion System is designed for users who need to take 120v North American equipment on tour in Europe. The system is designed to take European 240v single phase power and step it down to 120v single phase power. This compact system is easily deployed allowing 120v equipment to be plugged into one central location. 4 power adapters are included to handle a majority of power receptacles around Europe.

The power conversion is built around a custom transformer wound specifically for this system. The transformer is designed around European power allowing it to accept 240 volts at 16 amps and step it down to 120 volts with a capacity of 32 amps. The input stage of the transformer is fed via a True1 inlet protected by a 15amp hydraulic breaker. A meter shows the input voltage as well as the amp draw when components are plugged in. The output stage of the transformer provides 120 volts with a capacity of 32 amps. Power receptacles provided with the system are 4 AC “Edison” duplex outlets, 4 True1 outlets, 4 Powercon outlets and a front mounted courtesy duplex outlet with USB A & C charge ports. Many systems built by LM Cases feature DSK series True1 inlet and outlet boxes. The C 1/1 system is designed to work in tandem with the True1 infrastructure found in these systems. LM Tour Systems sells a variety of True1 cables to further expand this system. The LM Tour Systems S T/1 True1 stringer box can also be used with this system to increase the number of available True1 outlets.

A LM Tour Systems World Power Kit is provided with this system. The cable set includes a 25ft True1 – True1 link cable with 4 True1 to European adapters including Schuko E & F, Type G and Type L connectors. A full list of compatible countries is listed below.

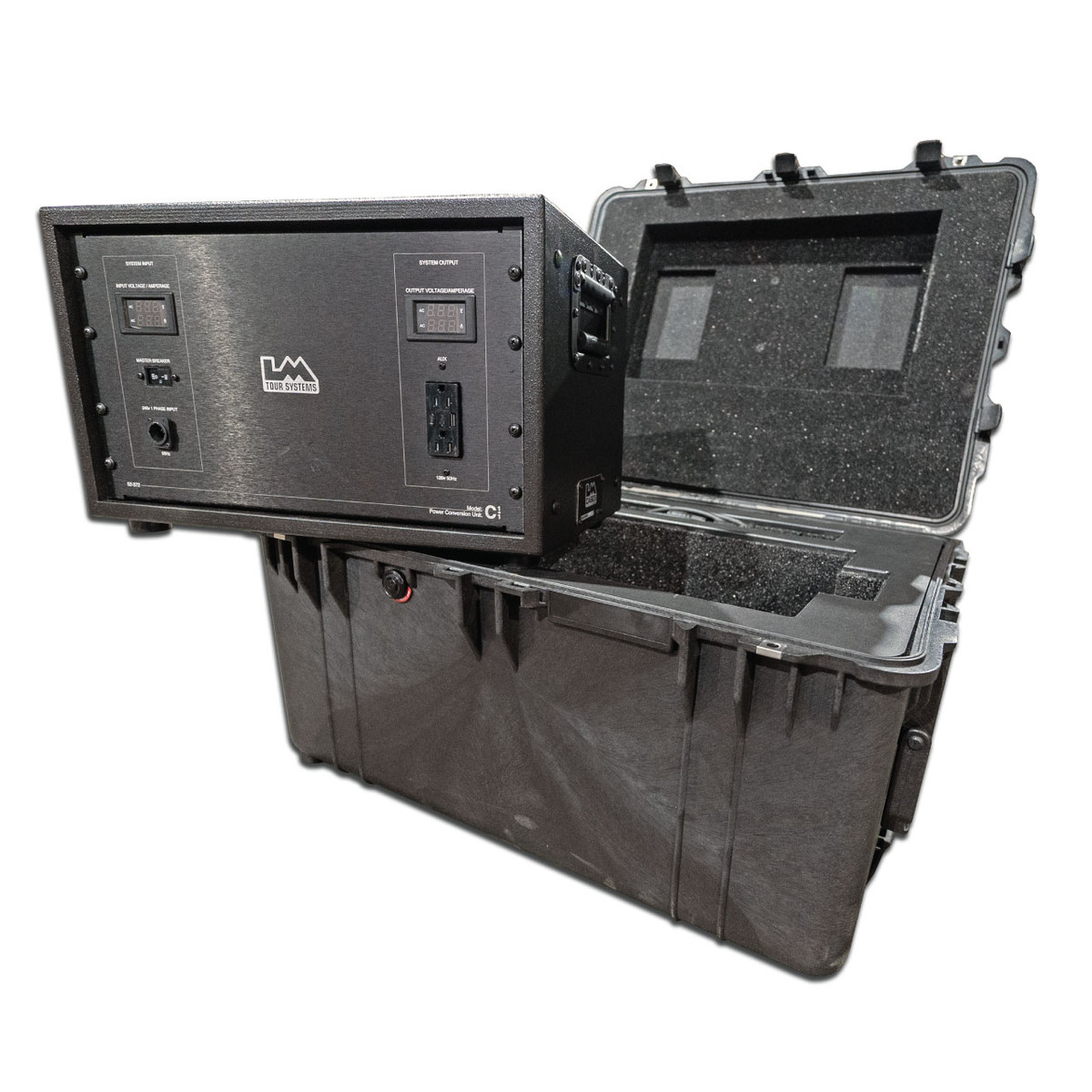

The conversion system is built into a ¾” Baltic Birch rack shell. This shell features side mounted and top mount handles to help with moving the system. The shell is finished with black textured coating. The shell is held in a custom CNC cut foam insert mounted in a Pelican 1630 case. The insert is designed to hold the rack shell and cable package in 2 dedicated compartments. The Pelican case is waterproof and features a telescoping handle and 4 end mounted dolly casters.

**NOTE THIS SYSTEM DOES NOT CONVERT FREQUENCY. PLEASE CONFIRM THAT YOUR EQUIPMENT CAN HANDLE 50Hz POWER**
