Features:

*Hubbell HBL2715 Inlet w/LED Power Indicator Lights

*Hubbell HBL2716 Outlet Wired Pre-Breaker

*Courtesy Duplex Outlet w/USB A & USB C Charging Ports

*Separate 5 AMP Breaker Over Courtesy Outlet

*2 – 20 Amp Breakers

*3 Duplex Outlets On The X Phase

*3 Duplex Outlets On The Y Phase

*Powercon Outlet On The X Phase

*True1 Outlet On The Y Phase

*Amp/Volt Meter Over X & Y Phases

*2U Height, 6” Deep Back Box

Description:

The LM Tour Systems 2/3 power distribution unit is designed for applications requiring 2 phase / split phase power inputs. The flexibility of this distro is perfect for users who need to operate systems in venues where 3 phase power isn’t always available.

The power input is a standard L14-30 recessed “male” flanged receptacle. This can easily be adapted to be powered by a 14-30R “dryer plug” to be used in smaller venues where 3 phase power is not available. An L14-30 outlet is wired pre-breakers to link multiple distros together. 2 LED lights are located behind the flange on the inlet showing when power is present at the inlet. 2 – 20 amp hydraulic breakers are provided as master switches over the system. This distro features 2 meters showing line voltage and amp draw of each power leg.

The rear of the unit features 6 duplex outlets, wired 3 per phase. A Powercon & True1 outlet are provided allowing locking outputs.

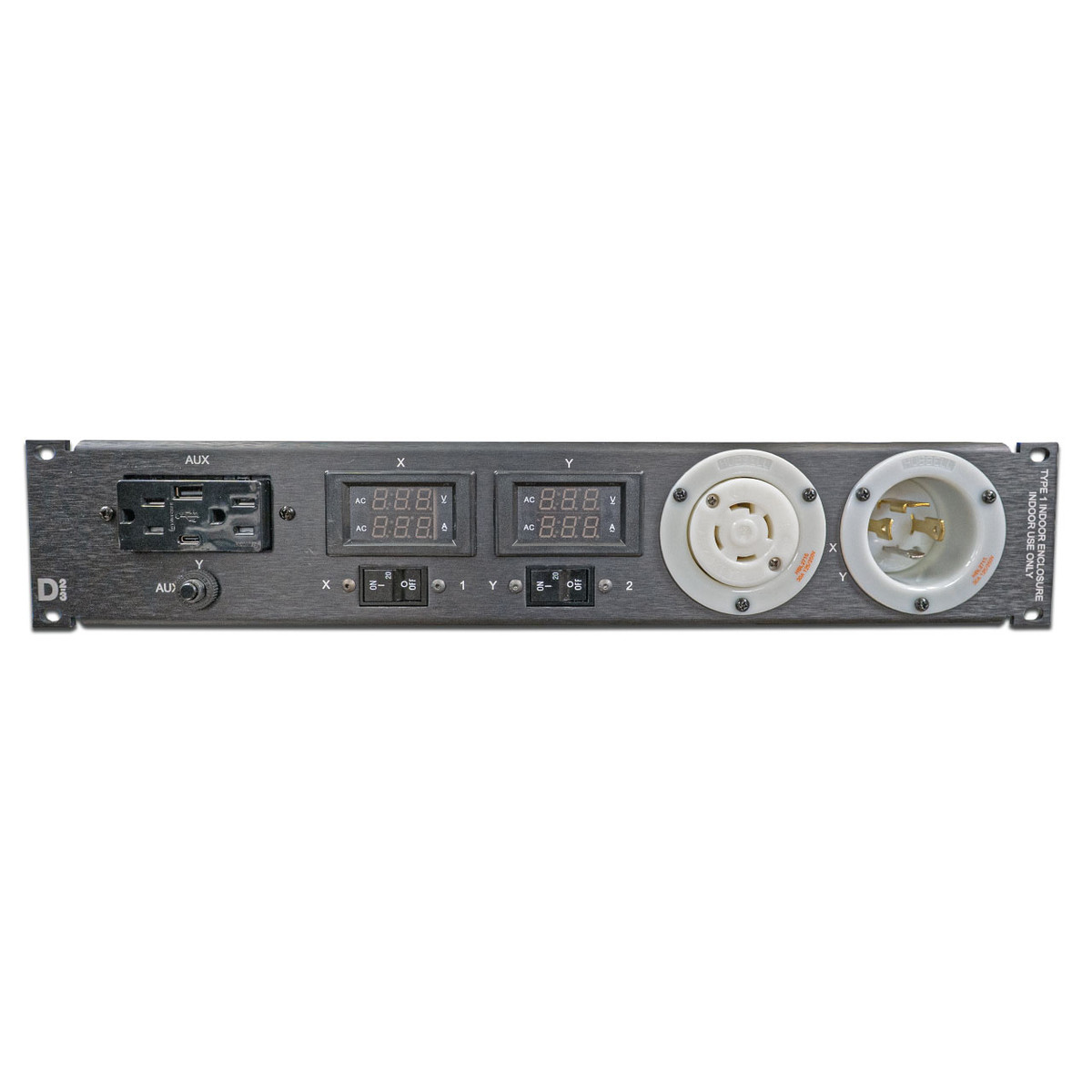

The front panel is built from 1/8” brushed aluminum with white laser etched labels. The back box is built from .063” aluminum and is 4.5” deep.

Don't forget to add a LM Tour Systems L14-30 custom power cable.
