Features:

*.125” Brushed Aluminum Face Plate w/ .063” Brushed Aluminum Back Box

*L21-30 Inlet & Loop Outlet

*Front Mounted Aux Outlet w/Dedicated 15amp Pop Breaker

*3 Hydraulic 20 Amp Breakers

*8 Rear Mounted Duplex Outlets (2 “X”, 2 “Y”, 4 “Z”)

*2RU Height

Description:

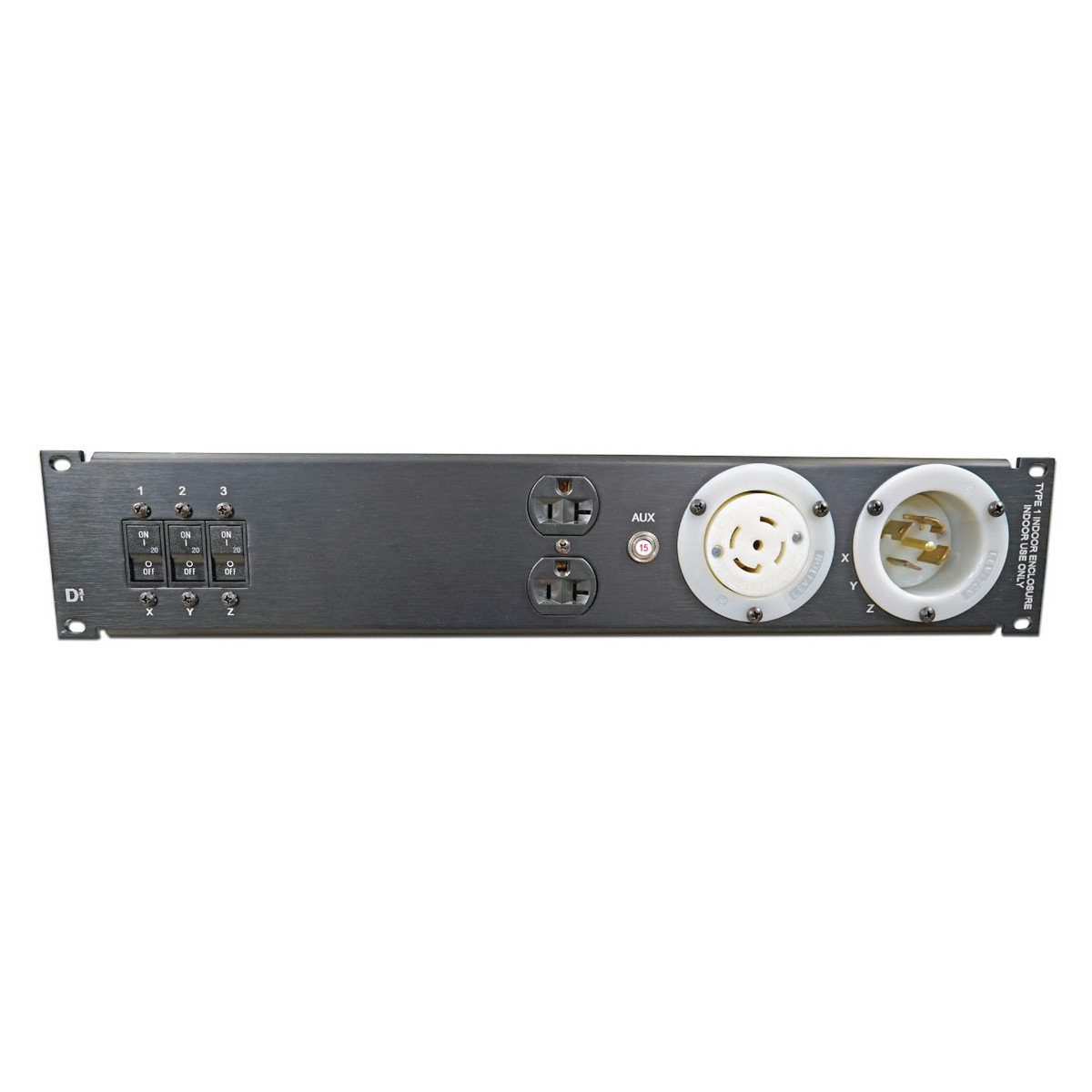

The D 3/1 three phase power distribution unit built by LM Tour Systems is designed for users who need a high density of standard duplex “Edison” outlets in a compact 2U enclosure fed from 30-amp three phase sources. This custom power distribution unit is wired in a Wye configuration fed from a 30 amp, L21-30 inlet. The wiring splits 3 phases into X, Y and Z circuits and feeds multiple duplex outlets located on the front & rear of the chassis. 3 – 20amp breakers are provided on the front panel as protection over the X, Y and Z circuits. A front mounted duplex outlet is provided with a dedicated 15amp pop breaker. A loop L21-30 outlet is located on the front panel and is wired directly to the inlet pre-breakers. The back of the unit features 8 duplex outlets with the following configuration: 2 duplex outlets on the “X” circuit, 2 duplex outlets on the “Y” circuit and 4 duplex outlets on the “Z” circuit. The front panel is 2U in height and is built from .125” black anodized, brushed aluminum. The back box is built from .063” black anodized brushed aluminum. All labels are white laser etched. This distro is perfect for racks that require electrical outlets in an Edison format where the power infrastructure is based around industry standard L21-30 3 Phase power.

Don’t forget to add a custom LM Tour Systems L21-30 power cable to your order!
