Features:

*15 Decora Outlet Sized Punches:

  -30 Total Standard AC Power Outlets

  -12 USB A Charge Ports

  -12 USB C Charge Ports

*Meter Showing Power Voltage & Amperage Draw

*Locking True1 Power Inlet

*25ft LM Tour Systems True1 – AC Edison Power Cable

*Locking True1 Power Outlet

*Waterproof Case Telescoping Handle & Dolly Casters

*Exterior Dimensions: 22.375” Wide x 18.875” Deep x 12” Tall

Description:

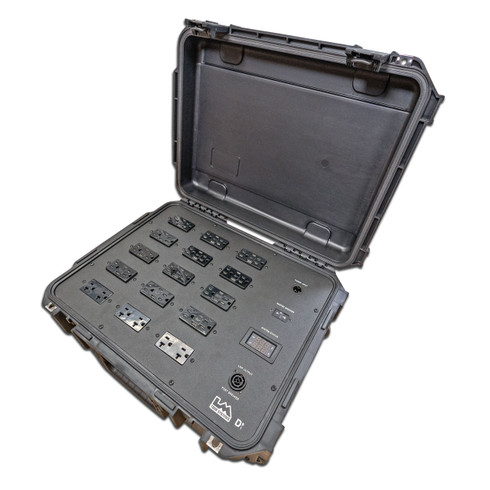

The LM Tour Systems D B/1 Power distribution system is designed for compact, high density power distribution for low powered devices such as smart phones, tablets, battery chargers and camera equipment. The primary users for this device are video and film productions where many devices need charged simultaneously on standard 15amp wall power. Athletic users also benefit from this system as it can be placed in a locker room as a centrally located charging station for players to charge their devices during a game.

The system is based around the LM Tour Systems 52-361 panel that features 15 standard Decora punches. The panel is loaded with 12 Leviton T5633 outlets that feature 2 AC outlets in addition to a USB A & C charge port. These outlets are autosensing and deliver power to each individual device based on its unique requirement. As each outlet provides 2 USB ports, the outlets can provide 5.1amps combined between the 2 ports. Overcurrent protection is included within the outlet to protect electronics from receiving too much power. 3 standard AC duplex outlets are provided for devices with larger diameter plugs as these large plugs can block the USB ports on the smart outlets.

Power is brought into the system using a provided LM Tour Systems True1 – AC power cable. This heavy duty cable is built from 12awg SJEEW wire. The cable features a standard AC “male” plug on one side and a locking True1 power connector on the opposing side. An optional LM Tour Systems True1 – True1 Link Cable can be ordered separately if additional cable length is required.

The power panel features a meter showing the incoming voltage and the amp draw of all devices plugged into the panel. The meter is a useful tool to show the available voltage of the incoming power source. The amperage meter shows in real time the power draw of devices connected to the panel. A HD 15amp hydraulic breaker is provided as an additional layer of protection over the system.

A locking True1 outlet is provided allowing for the connection of additional equipment. LM Tour Systems offers a variety of True1 compatible cables to further expand your system: A True1 – 4Plex cable is perfect for providing a power source for larger diameter plugs that may block USB ports. True1 – Pendant cables are perfect for powering remote systems that may be located farther away from the D B/1 panel. The power meter measures the amp draw of devices connected to the True1 outlet.
