Features:

*Rugged 1/8” Steel Construction

*Male DB25 Outlet

*Female XLR Connectors

*Tascam DB25 Pinout

*8” Wide x 4” Deep x 3” Tall

*5lbs

Description:

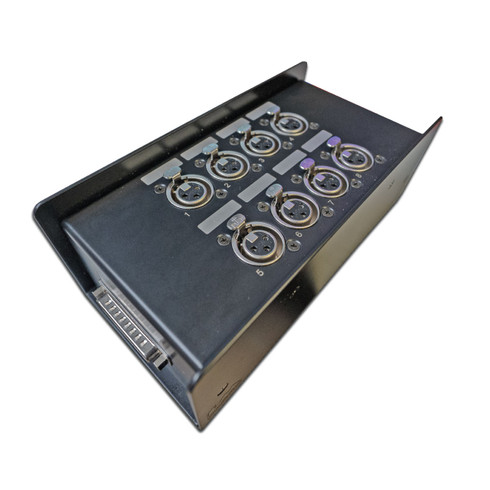

The LM Tour Systems DB25 – XLR stage box is designed for heavy duty applications where DB25 multicore cable is used. The unique box can be used with custom LM Tour Systems DB25 cables or mass produced DB25 cables. The DB25 connector is wired using the Tascam protocol. The internal connections are made using a ribbon cable that directly connects the XLR’s to the DB25 connector. Each pin is protected with heat shrink to prevent crosstalk or arcing. This point-to-point wiring method is much more durable compared to mass produced designs using PCB mounted XLR’s and IDC connectors. The chassis is built from 1/8” steel and features numbered connectors and blank bubbles for customer labels.
