Features:

*1” PE Foam Lined Interior

*2” PE Foam Under Amp

*Accessory Compartment Under Amp

*3 Deep Recessed Handles

*3.5” Casters (2 Locking)

*Stacking Caster Wells In Lid

*Max OD Including Corners & Casters: 26” Wide x 14.625” Deep x 30.625” Tall

*52lbs

Description:

This custom case built by LM Cases is designed to hold the EVH 5150 Iconic 40w guitar amplifiers. The case interior is lined with 1” PE foam with 2” PE under the amplifier. An accessory compartment is located under the amplifier for additional storage.

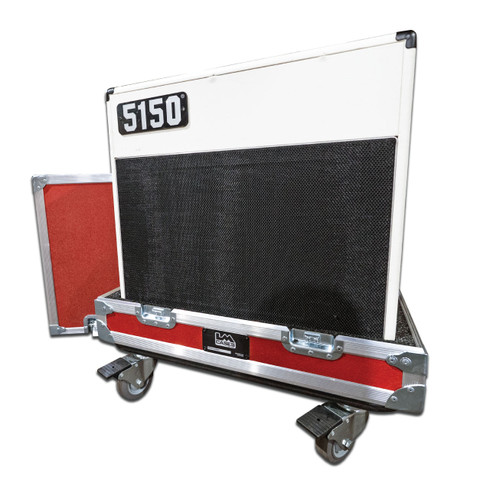

The case exterior is built from 3/8” plywood laminated with your choice of ABS colors. (Red ABS is shown in the example picture). 3 deep recessed handles are provided: a top centered handle is provided to help with removing the lid in addition to providing an easy centered position to push the loaded case. Stacking caster wells are located in the top lid. These provide a way of elevating the case tray with the amplifier to ear height thus reducing stage volume. The case rides on 3.5” casters. These casters are mounted via a full sized ¾” plywood caster board. 2 of the casters are locking.
