Features:

*Snap Attack® Machine Installed

*Machine’s Power Connector Upgraded To A Locking True1

*HD Cable Reel w/125ft Of SO Cable Loaded

*Gas Powered Generator Installed

*Transfer Switch To Select Between Power Sources

*Split Top Lids w/Football Storage

*14 Deep Recessed Handles

*6” Field Casters (All Locking)

*Your Choice Of Exterior Colors

*Max Exterior Dimensions Including Corners & Casters: 35.75” wide x 30.5” Deep x 59.25” Tall

*495lbs

Description:

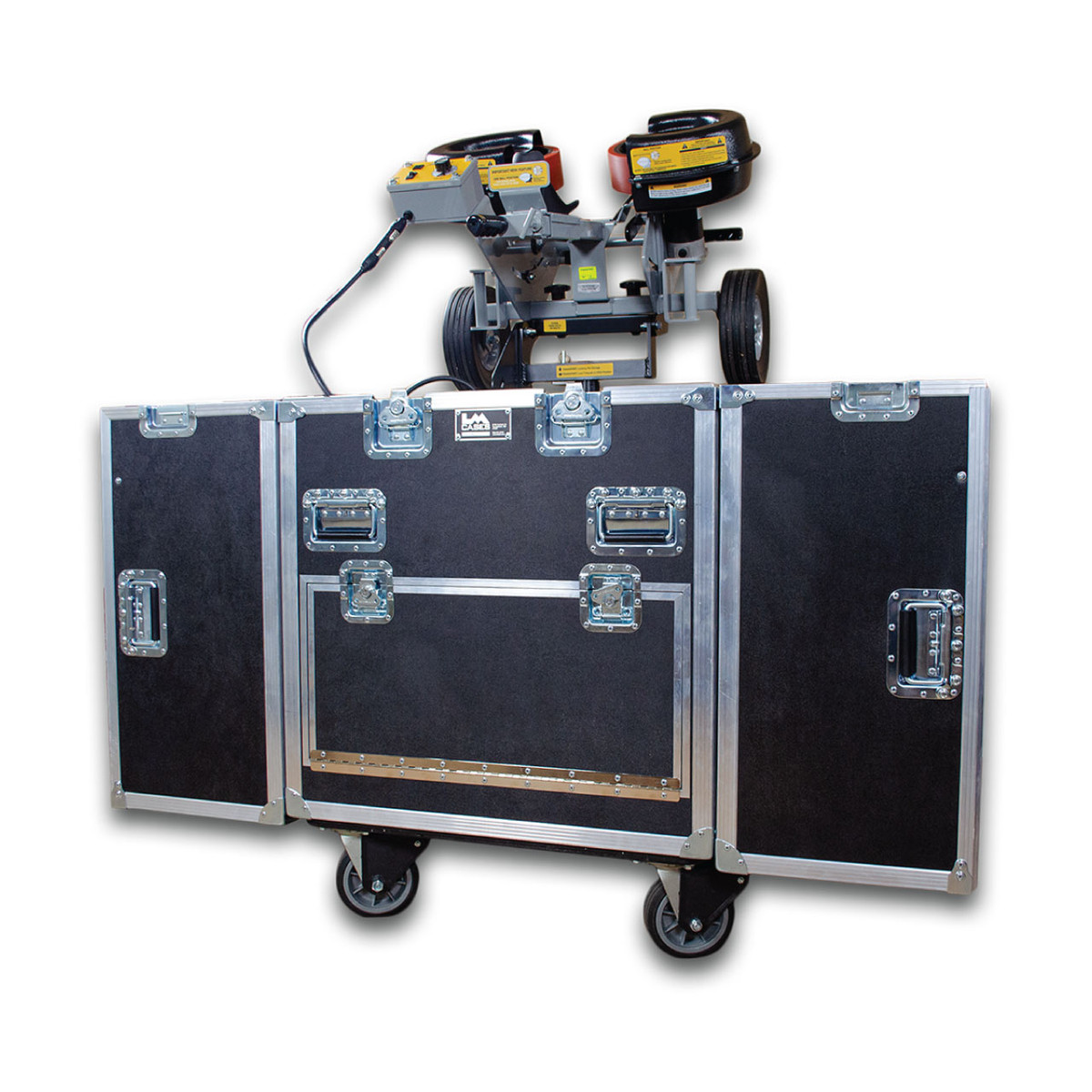

This custom transport case built by LM Cases is a fully integrated system designed to hold a Snap Attack® football launching machine. The case features a gas-powered generator for remote operation and a HD cable reel.

The machine is mounted using the Sports Attack cart clamp.  The clamp and machine assembly are mounted to the case via a 1.5” thick plywood base utilizing a ½” thick plasma cut steel interface piece top and bottom for a stable connection. The machine’s standard AC power connection is replaced with a water-resistant locking True1 connector that interfaces to the case via a LM Tour Systems DSK-T box. The work surface features a LM Tour Systems GTS10A transfer switch box that allows both power sources to be used safely without the risk of back feeding. The GTS10A has a status LED showing voltage present on the wired and generator sides for troubleshooting. The case features a custom-built cable reel mounted on a slide out shelf. The reel is “live” meaning its always energized allowing the user to move the machine or extend more cable without interrupting power. The reel is loaded with 125ft of SO rated outdoor waterproof cable. A 1800watt generator is provided for remote operation. The generator is orientated with its exhaust facing away from the user. Like the cable reel, it is also mounted on a slide out shelf. Each shelf is built from ½” marine grade plastic and mounted on HD Accuride glides. All power and electrical components are installed by the LM Cases Custom Integration department.

The exterior case is built from ½” plywood laminated with your choice of ABS plastic colors. The case features split top hinged lids. Each lid features an elastic net allowing footballs to be stored on each side while the machine is in use. The case features 14 deep recessed handles and rides on 6” field casters.
