Features:

*48 D-Series Punches

*Each Group Labeled “In” & “Out"

*4U Panel Height

*Hinged Design w/Captive 10/32” Screws

*Includes Lacing Bars & 4/40” Threaded Stand Offs

Description:

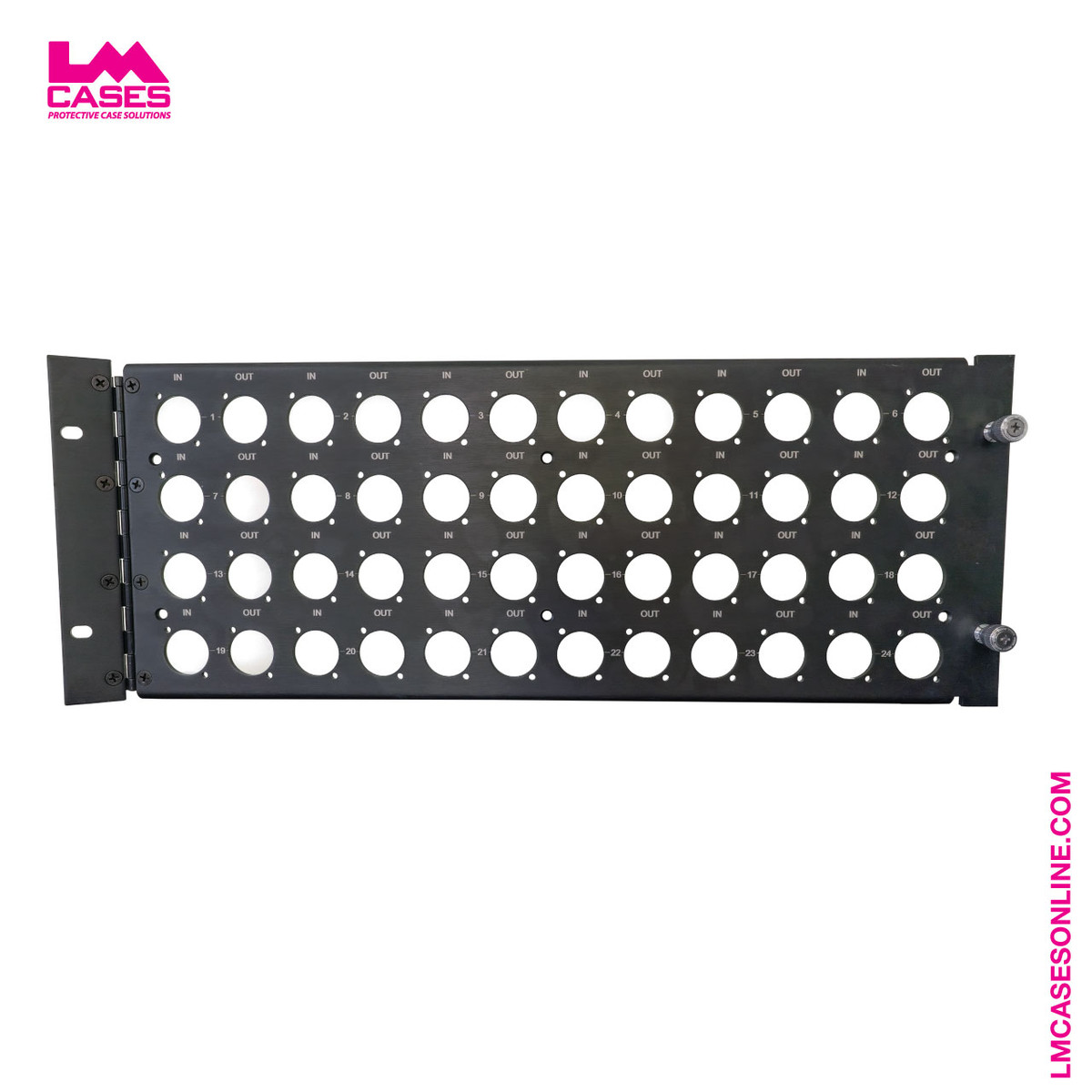

This custom 4U mic split panel is designed for the engineer who would prefer to build their own system. The panel comes pre-punched with 48 holes for XLR connectors. The panel is labeled 1-24 with “in” and “out” over each corresponding hole. The panel also comes with lacing bars that are designed to attach via standoffs to the back of individual connector’s screws.

The panel is built from .125” brushed aluminum and features white laser etched labels. The panel is hinged and features 2 captive 10/32” screws.

Don't forget to add XLR connectors & screws to your build!
