Features:

*Neutrik NC4MXX-B Male Black/Gold XLR Connector

*Neutrik NC4FXX-B Female Black/Gold XLR Connector

*Canare L-4E6SBK Portable Starquad Cable

*LM Tour Systems Branded Cable Tie

*“4 Pin XLR” Label At Each End

*Custom Heat Shrink Label Text

*Built To Length Per Order

Description:

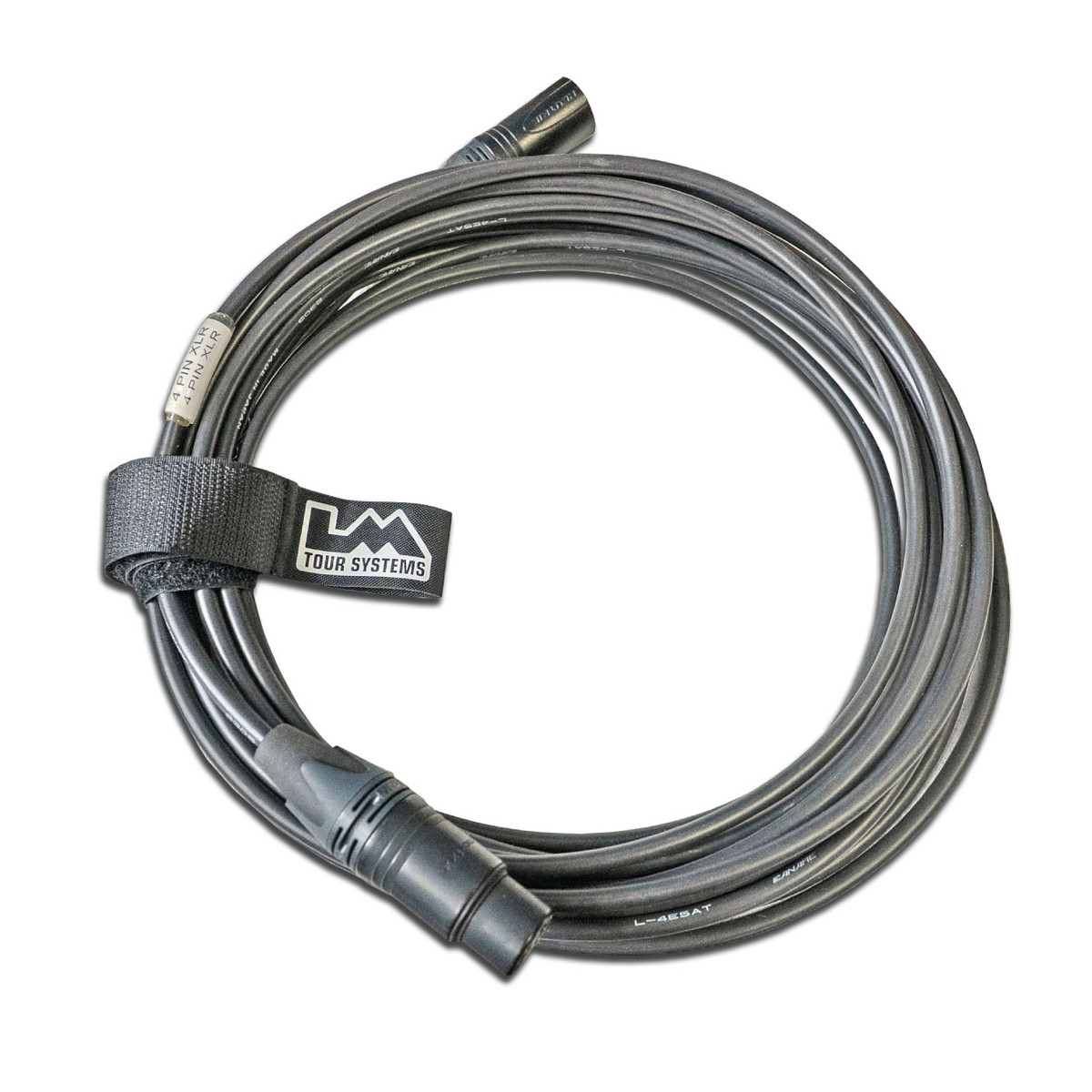

This custom-built 4-Pin XLR cable from LM Tour Systems is designed for portable and installed applications requiring 4-pin XLR connectivity, including LED lighting and site communication systems. While optimized for use with LM Tour Systems LED products, this cable is also well suited for extending Clear-Com headsets and other low-voltage DC applications.

The cable utilizes Canare L-4E6S Starquad, with conductors split and paired at the connectors (pins 1–2 and 3–4) to support balanced signal or low-current DC distribution. A heat shrink label is provided notating “4 Pin XLR” to avoid confusion with 3 pin XLR cables. Custom heat shrink labeling can be added at no additional charge.

Note: When used for power, ensure total current draw does not exceed 2A continuous. This cable is intended for low-voltage DC applications only and is not suitable for AC mains or high-current distribution.
