Features:

*2U Chassis, 6” Depth

*2 Configurable Slots (Includes 2 Adapter Plates)

*2 Leviton T5633 Outlets (Includes USB A & C Outlets)

*Meter Showing Voltage & Amp Draw

*20 Amp Hydraulic Breaker

*6 True1 Outlets

*1 True1 Inlet

Description:

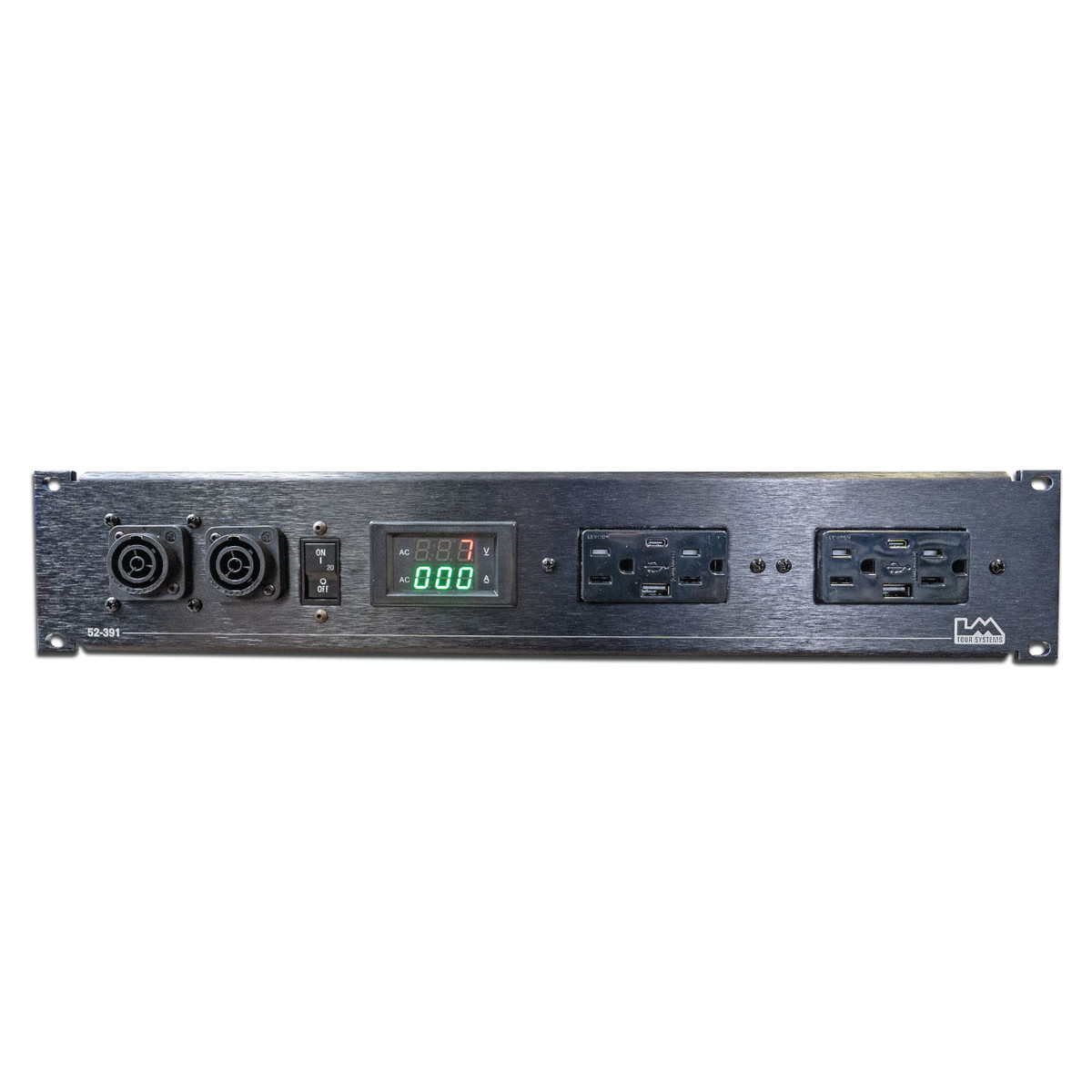

The LM Tour Systems Configurable True1 Courtesy Power Distro w/Breaker & Meter is a compact and flexible 2RU rackmount power distribution solution built around the LM Tour Systems 52-391 configurable chassis platform. Designed for touring, broadcast, integration, production offices, backstage support, and temporary installations, this unit provides reliable True1 power distribution with convenient front-panel utility power and real-time system monitoring.

The chassis features a shallow 6” rack depth, making it ideal for portable racks, fly packs, mobile production systems, drive racks, and equipment carts where space is limited. Two configurable panel positions allow the user to customize the power flow direction of the system. The unit can be configured to accept power from either the front or rear of the chassis depending on the application.

Included with the unit are the LM Tour Systems 52-374 D-Series adapter plate and 52-375 True1 outlet plate, allowing users to adapt the distro to a wide range of workflows and connector requirements.

The front panel includes dual Leviton T5633 Decora duplex outlets, each featuring:

• (2) 120v AC outlets
• USB-A charging port
• USB-C charging port

This provides convenient charging and utility power for laptops, tablets, phones, network devices, work lights, and production accessories directly from the rack.

A front-panel digital meter displays incoming voltage and total amp draw of connected equipment, giving users quick visual confirmation of system status and power consumption. Protection is handled via a 20 amp hydraulic breaker designed for reliable operation in demanding live event and touring environments.

The unit includes a total of (6) Neutrik True1 power outlets and (1) True1 inlet, allowing the distro to feed additional racks, workstations, powered speakers, lighting systems, or production equipment safely and efficiently.

Built for real-world touring and integration applications, the LM Tour Systems configurable chassis platform allows users to standardize rack power infrastructure while maintaining flexibility for changing system requirements.
