Features:

*Hubbell HBL2815 Inlet w/LED Power Indicator Lights

*Hubbell HBL2816 Outlet Wired Pre-Breaker

*Courtesy Duplex Outlet w/USB A & USB C Charging Ports

*Separate 5 AMP Breaker Over Courtesy Outlet

*2 – 20 Amp Breakers, 1-30 Amp Breaker

*L5-30 Rear Outlet w/Dedicated 30 Amp Breaker

*4 Duplex Outlets On The Y Phase

*2 Duplex Outlets On The X Phase

*True1 Outlet On The X Phase

*3U Height, 6” Deep Back Box

Description:

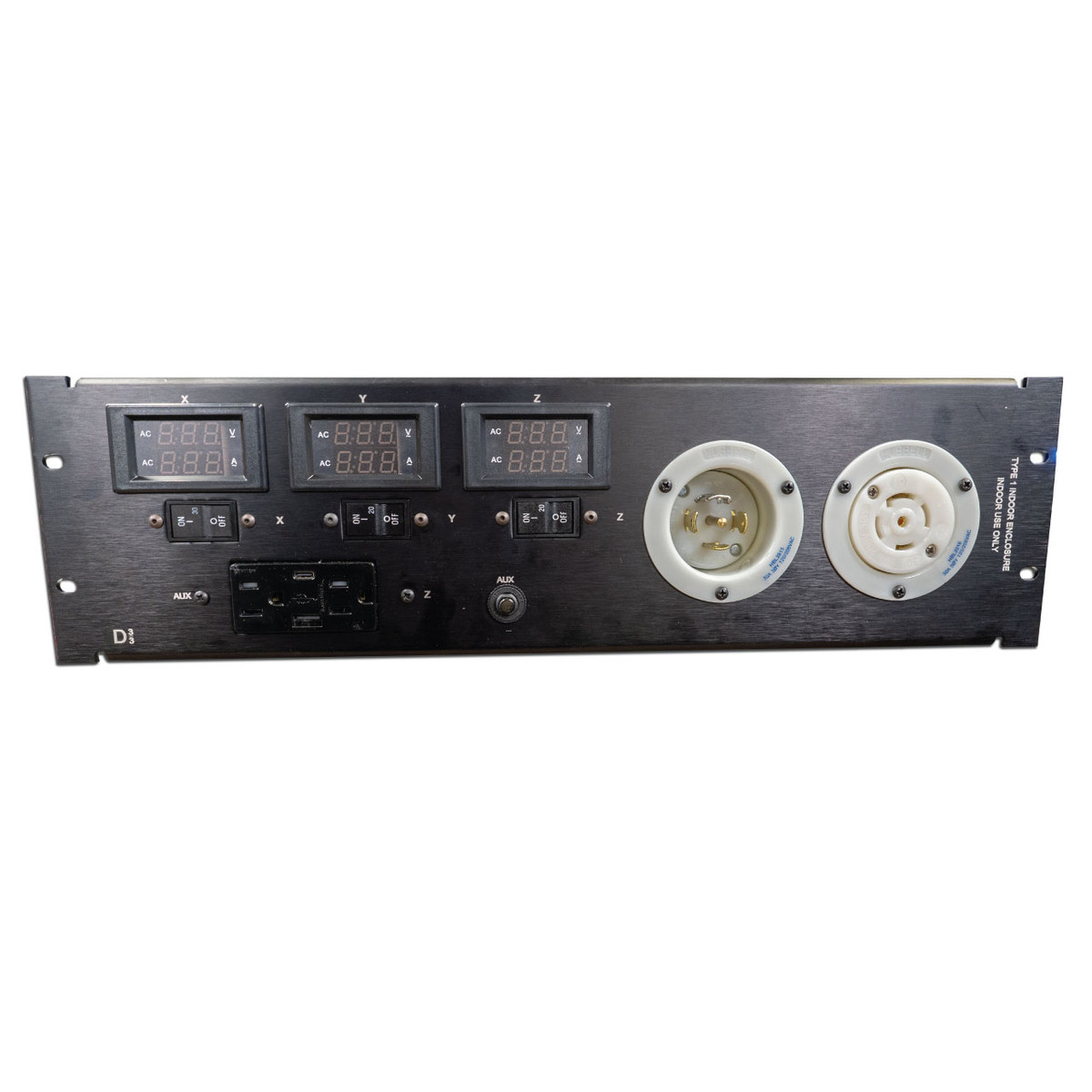

The LM Tour Systems 3/3 power distribution unit is designed with amplifier racks in mind. The 3-phase distribution unit provides a variety of outlets allowing for multiple uses for a variety of applications. Power is brought into the unit via a Hubbell 2815 flanged inlet using a NEMA L21-30 locking connector. A Hubbell HBL2816 flanged outlet is provided for looping in additional systems or for local courtesy power. 3 meters are provided to show the voltage and amperage draw over each leg.

3 hydraulic breakers are provided as master switches over the system. 2 – 20-amp breakers are provided over the Y and Z phases with a dedicated 30-amp breaker over the X phase which powers the rear mounted L5-30 outlet. The only outlet on the X phase is the Hubbell HBL2616 which is designed for large amplifiers or other 30-amp sources.

The Y phase features 4 duplex outlets. The Z phase features 2 rear mounted duplex outlets, a True1 outlet and a front mounted courtesy outlet. The front mounted courtesy outlet features a USB A & C charge port and is protected by a dedicated 5-amp breaker.
