LM Cases Triad Orbit Ready Integration

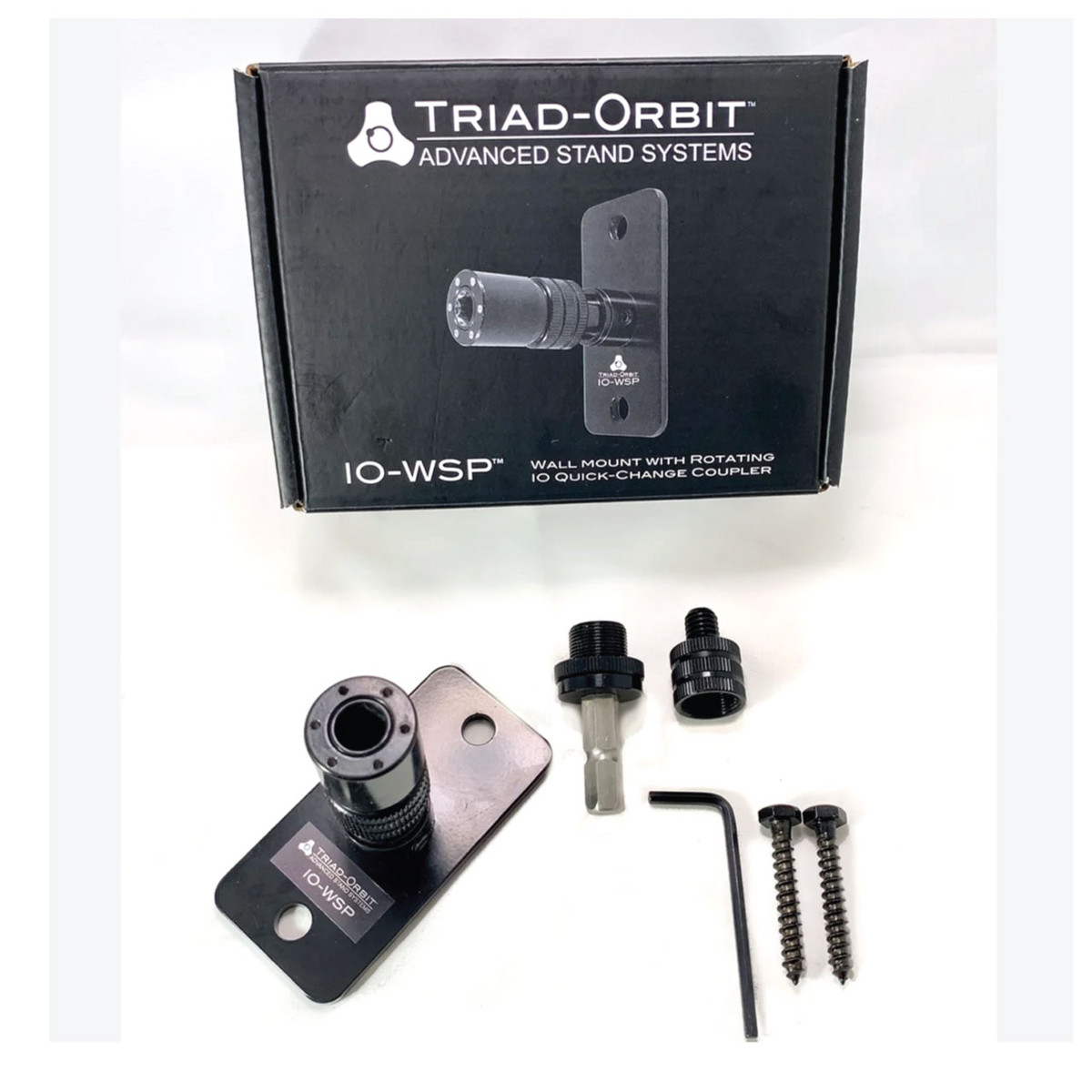

Select LM Cases console cases feature a custom recessed mounting pocket specifically designed to contour the steel mounting plate of the Triad Orbit IO-WSP. This dedicated mounting location provides a clean, integrated installation without requiring users to permanently modify their case.

Each Triad Orbit Ready mounting location features two recessed threaded T-nuts and includes black stainless steel mounting bolts for securing the IO-WSP to the case. This allows users to install the mount when needed or remove it when the mounting location is not in use.

Once installed, the IO-WSP provides a versatile attachment point for building customized accessory configurations around the console. Whether adding a microphone boom for a front-of-house engineer, an articulated confidence monitor, or a tablet holder for additional control and monitoring, the Triad Orbit iO system offers a modular approach to workstation organization.

Modular iO Quick-Change System

At the center of the IO-WSP is Triad Orbit's iO quick-change connection, allowing compatible accessories to be quickly attached, detached, or moved between mounting locations.

The rotating connection provides 360° of adjustment around the mounting axis, offering additional flexibility when positioning compatible accessories. Combined with Triad Orbit's selection of boom arms, orbital mounts, and adapters, the IO-WSP allows production personnel to configure their workspace for specific applications.

Compatible accessories include:

• Triad Orbit OM Orbital Boom: A compact, adjustable boom arm suitable for microphone positioning and other compatible mounting applications

• Triad Orbit OA Articulating Mount Ball: Provides adjustable angular positioning when integrated into compatible mounting assemblies

• Triad Orbit IO-VM VESA Mount Adapter: Supports compatible video displays and confidence monitors using standard 75 mm x 75 mm or 100 mm x 100 mm VESA mounting patterns

• Additional Triad Orbit iO Accessories: Expand the system with compatible mounting adapters, support arms, and specialty equipment holders

Applications Beyond Console Cases

While the IO-WSP is a key component of the LM Cases Triad Orbit Ready series, it can also be used independently in traditional wall, ceiling, and structural mounting applications.

Its compact steel mounting plate and rotating iO connection make it suitable for professional recording studios, broadcast facilities, production workstations, installed AV systems, and other applications requiring a modular mounting platform.

Build Your Triad Orbit Ready System

The Triad Orbit IO-WSP is the starting point for building a customized accessory mounting system around your LM Cases console case or workstation.

Choose the IO-WSP as your mounting foundation, then select compatible Triad Orbit accessories to configure the system for your specific production requirements.

Please Note: The IO-WSP is sold separately from LM Cases Triad Orbit Ready console cases unless otherwise specified. Compatible boom arms, monitor mounts, and other accessories are available separately. Maximum supported loads depend on the mounting surface, installation method, accessory configuration, and case design. Not all mounting arrangements are suitable for every console case.
