Features:

*.125” Black Anodized Aluminum Construction

*Neutrik NAC3PX-TOP True1 Inlet/Outlet

*3 Blank D-Series Punches

*Neutrik NAC3FPX-WOT-TOP Outlet

*Edison AC Outlet

*Face Plate Dimensions: 5” Wide x 4.5” Tall

*Back Box Depth: 3.625”

 Description:

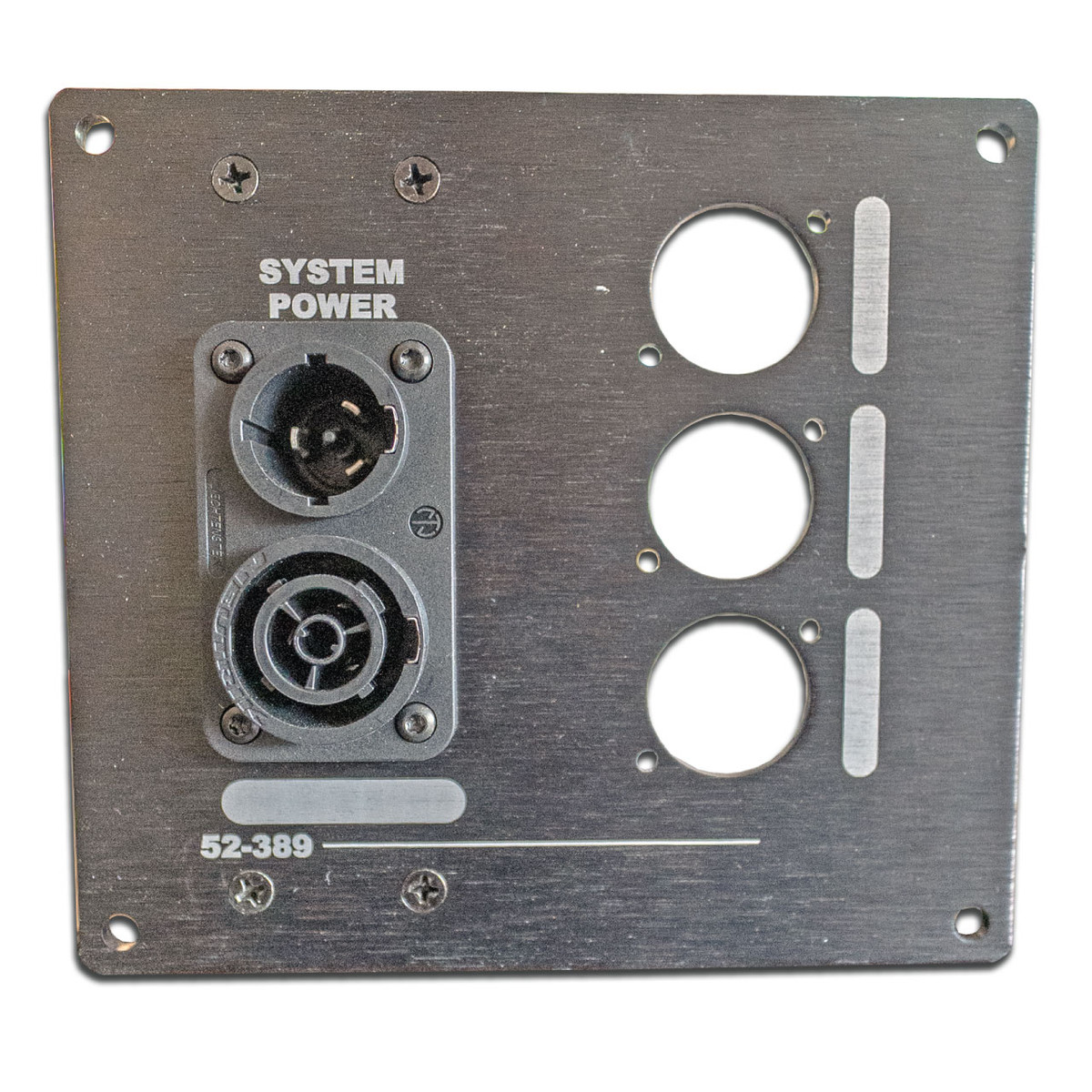

 The LM Tour Systems 52-389 inlet panel provides a compact, tour-grade solution for bringing power and customizable signal connectivity into a road case, rack, workstation, confidence monitor, or workbox.

 Built from .125" black anodized aluminum, the fully enclosed panel can be mounted to the interior or exterior of a case to create a clean, protected system connection point. The inlet portion uses a Neutrik NAC3FPX-WOT-TOP. This allows for a Neutrik True1 outlet to link other systems or as a way to use LM Tour Systems 4-Plex and or Pendant cables to provide additional power. The fully enclosed back box features a Neutrik NAC3FPX outlet and a single AC power outlet.

Three blank Neutrik D-Series punches allow the panel to be configured for the required signal connections, including XLR, etherCON, HDMI, USB, opticalCON, BNC, or other D-Series-compatible connectors.

Don't forget a connector or power cable for your box!
